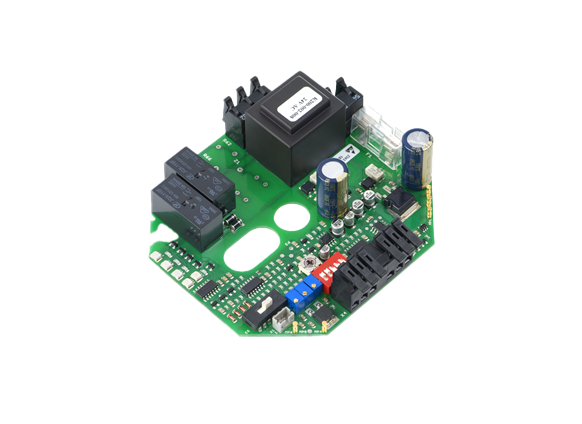

Electronic position regulator controls actuator to a predefined setpoint.
Input signal/output signal 0…10 V, 0 (4)…20 mA
Supply voltages such as 1~24 V AC, 115 V AC, 230 V AC, 24 V DC
Quick and easy connection using terminal boards with spring-type terminals
Reversing switch for direction reversal, switch for hysteresis setting, selector switch for dead band
Simple parameter setting using DIP switches
Adjustable behaviour on loss of signal (Fail as is, Fail close, Fail safe)
Setting of minor strokes possible

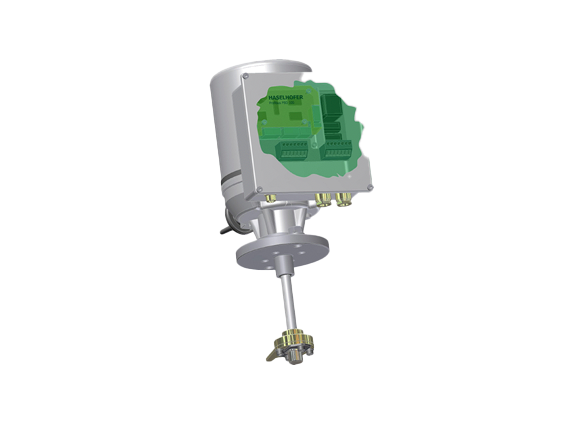

Profibus module PBD 100
Profibus module PBD 100
The Profibus module communicates as slave participant on the bus with PLC controls, regulators or directly with the control room and performs the issued operation commands within the actuator.
The interface uses 2-wire control; transmission is made using a DP-V0 protocol during cyclic data operation.
The bus module can be mounted with series D 2, D 10, DA 15/30/40 and SBA 12/20/45, SBA 80, SBA 200.
Power Pack FSC 20
Power Pack FSC 20
Module with electric energy buffer for valve operation in case of power failure. The actuator is operated to a defined end position.
The energy is saved in super capacitors
Voltage supply with wide range input 90…264 V AC, 47…63 Hz, 24 V DC
Mounting to linear and part-turn actuators
Local control available as an option
Electronic position transmitter ESR 100 / Hi-Sense
Electronic position transmitter ESR 100 / Hi-Sense
Passive position feedback signal for transmitting the position to the control room.
Suitable for use in harsh climates. If high requirements are placed on precision and reproducibility of the feedback signals, the precision electronics "Hi-Sense“ can be used.
Output signal 0…10 V, 0 (4)…20 mA
Supply voltage 24 V DC
Precise position recording using contactless sensors.
Not susceptible to vibration and temperature impacts.
